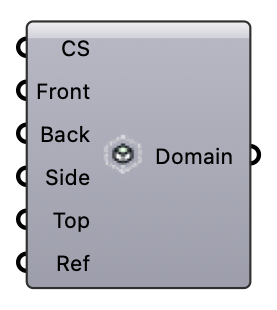

Box Domain - [source code]

Define simulation domain extents and refinement padding. OutdoorPlus

Input

Name Nickname Description Type
Cell Size CS Base cell size for the domain (model units). Integer
Front Extension Front Padding in front of the geometry bounding box (model units). Optional; default is -1 (auto: 5x the geometry's max height). Number
Back Extension Back Padding behind the geometry bounding box (model units). Optional; default is -1 (auto: 15x the geometry's max height). Number
Side Extension Side Padding on the side faces of the geometry bounding box (model units). Optional; default is -1 (auto: 5x the geometry's max height). Number
Top Extension Top Padding above the geometry bounding box (model units). Optional; default is -1 (auto: 5x the geometry's max height). Number
Refinement Box Extension Ref Padding applied to the refinement box around the geometry (model units). Optional; default is -1 (auto: 1 model unit). Number

Output

Name Nickname Description Type
Domain Parameters Domain Domain and refinement box parameters as a list. Number
