Create Mesh - [source code]
Create a visualization mesh from polyMesh point/face data. OutdoorPlus

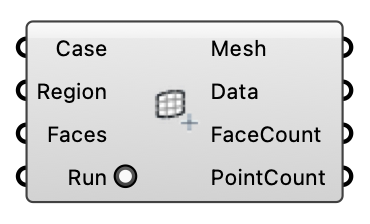

Input
| Name | Nickname | Description | Type |
|---|---|---|---|
| Case | UMF case used to locate the mesh data. | Generic Data | |
| Region | Region name to visualize. | Text | |
| Face Indices | Faces | Optional face indices to visualize. | Integer |
| Run | Generate the mesh when true. | Boolean |
Output
| Name | Nickname | Description | Type |
|---|---|---|---|
| Unified Mesh | Mesh | Generated unified mesh. | Mesh |
| Mesh Data | Data | Geometric and topological mesh data. | Generic Data |
| Number of Faces | FaceCount | Total face count in the polyMesh. | Integer |
| Number of Points | PointCount | Total point count in the polyMesh. | Integer |
