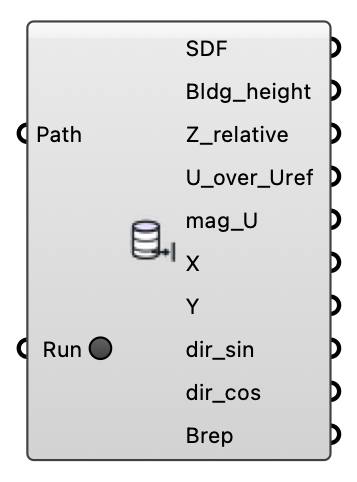

Dataset Reader - [source code]
Read processed CSV datasets back into Grasshopper. Supports mag_U and all spatial features.
Input
| Name | Nickname | Description | Type |
|---|---|---|---|
| CSV Path | Path | Path to the .csv file to read. | Text |
| Run | Trigger the reading process. | Boolean |
Output
| Name | Nickname | Description | Type |
|---|---|---|---|
| SDF | Signed distance from building. | Number | |
| Bldg_height | Building height. | Number | |
| Z_relative | Relative height. | Number | |
| U_over_Uref | Wind speed at height. | Number | |
| mag_U | Simulated wind speed magnitude. | Number | |
| X | X coordinate. | Number | |
| Y | Y coordinate. | Number | |
| dir_sin | Direction sin component. | Number | |
| dir_cos | Direction cos component. | Number | |
| Brep | Reconstructed building geometry (boxes) from CSV data. | Geometry |
