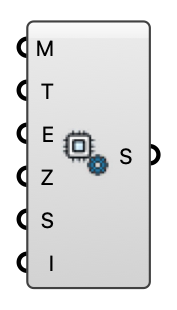

FluidX3D Run Settings - [source code]
Solver controls for the FluidX3D GPU engine (memory, simulated time, export interval, and an interactive real-time window).
Input
| Name | Nickname | Description | Type |
|---|---|---|---|
| Memory | M | GPU memory budget (MB). | Integer |
| Sim Time | T | Physical simulated time (s). | Number |
| Export Interval | E | VTK export interval (s, simulated time). | Number |
| Ground Z | Z | Ground plane Z (model units). | Number |
| Source Dir | S | Optional override for the FluidX3D source folder. Leave empty to use the default install path. | Text |
| Interactive | I | Open FluidX3D's native real-time GPU window (live render, on-the-fly camera + mode keys) while continuing periodic VTK export for Eddy3D Live View and probes. Windows: full support; macOS: requires XQuartz (X11). | Boolean |
Output
| Name | Nickname | Description | Type |
|---|---|---|---|
| Settings | S | FluidX3D run settings. | Generic Data |
