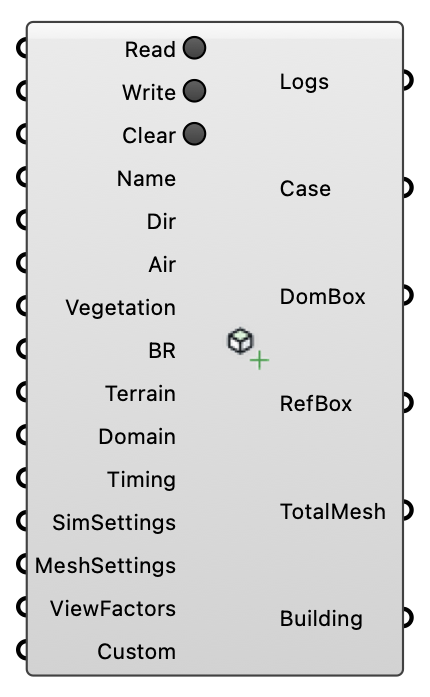

Outdoor+ Case - [source code]

Create, read, and manage an Outdoor+ (UMF microclimate) case. OutdoorPlus

Input

Name Nickname Description Type
Read Case Read Read an existing case from the working directory. Boolean
Write Write the case files to the working directory. Boolean
Clear Case Clear Delete all files for this case in the working directory. Boolean
Case Name Name Case folder name (no spaces). Text
Working Directory Dir Folder for case files and results. Text
Air Region Air Air region for this case. Generic Data
Vegetation Region Vegetation Vegetation region for this case. Generic Data
Building Region BR Building region of this case. Generic Data
Terrain Region Terrain Terrain region for this simulation (optional). Generic Data
Domain Parameters Domain Domain and refinement box parameters. Number
Timing Settings Timing Case timing settings. Generic Data
Simulation Settings SimSettings Simulation control settings. Generic Data
Simulation Mesh Settings MeshSettings Simulation mesh settings. Generic Data
View Factor Settings ViewFactors View factor settings. Generic Data
Custom Entries Custom Optional additional entries to merge into the case. Generic Data

Output

Name Nickname Description Type
Logs Case modification logs. Text
Case UMF case instance. Generic Data
Domain Box DomBox Resolved simulation domain box. Box
Refinement Box RefBox Refinement box derived from the case. Box
Total Mesh TotalMesh Total mesh for the case. Mesh
Building Building mesh. Mesh
