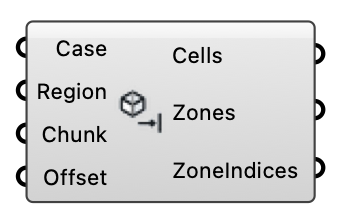

Read Cells - [source code]
Read cell connectivity and cell zones for a region. OutdoorPlus
Input
| Name | Nickname | Description | Type |
|---|---|---|---|
| Case | UMF case containing the region data. | Generic Data | |
| Region | Region name to read. | Text | |
| Chunk Size | Chunk | Chunk size for reading owner/neighbour files. Optional; default is 500. | Integer |
| Chunk Offset | Offset | Chunk offset for reading owner/neighbour files. Optional; default is 0. | Integer |
Output
| Name | Nickname | Description | Type |
|---|---|---|---|
| Cells by Face Indices | Cells | Tree of cells containing face indices. | Generic Data |
| Cell Zone Names | Zones | Cell zone names. | Text |
| Cell Zone Indices | ZoneIndices | Indices for each cell zone. | Generic Data |
