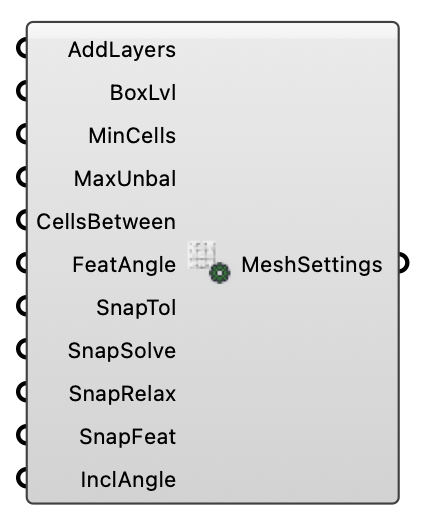

Simulation Mesh Settings - [source code]
Configure snappyHexMesh settings for the simulation. OutdoorPlus
Input
| Name | Nickname | Description | Type |
|---|---|---|---|
| Add Layers | AddLayers | Enable prism layers. Optional; default is true. | Boolean |
| Box Refinement Level | BoxLvl | Refinement level inside the refinement box. Optional; default is 2. | Integer |
| Min Refinement Cells | MinCells | Minimum refinement of cells. Optional; default is 0. | Integer |
| Max Load Unbalance | MaxUnbal | Maximum load unbalance. Optional; default is 0.10. | Number |
| Cells Between Levels | CellsBetween | Number of cells between refinement levels. Optional; default is 2. | Integer |
| Resolve Feature Angle | FeatAngle | Feature angle for edge detection (deg). Optional; default is 10. | Number |
| Snap Tolerance | SnapTol | Snap tolerance. Optional; default is 1.0. | Number |
| Snap Solver Iterations | SnapSolve | Solver iterations for snapping. Optional; default is 80. | Integer |
| Snap Relax Iterations | SnapRelax | Relaxation iterations for snapping. Optional; default is 8. | Integer |
| Snap Feature Iterations | SnapFeat | Feature snap iterations. Optional; default is 20. | Integer |
| Included Angle | InclAngle | Identify a feature when face angle < includedAngle (deg). Optional; default is 90. | Number |
Output
| Name | Nickname | Description | Type |
|---|---|---|---|
| Simulation Mesh Settings | MeshSettings | Simulation mesh settings for snappyHexMesh. | Generic Data |
