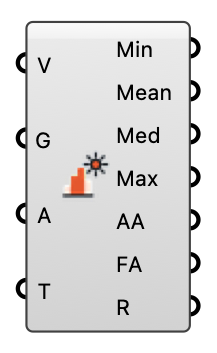

Sun Stats - [source code]
Area-weighted min/mean/median/max over a sun result, plus the area and fraction reaching a threshold.
Input
| Name | Nickname | Description | Type |
|---|---|---|---|
| Values | V | Per-point results: sun hours, irradiation, whatever is being summarised. | Number |
| Grid | G | Optional analysis mesh — cell areas are taken from its faces, one per point. Without it every point is weighted equally, which is only right for a uniform grid. | Mesh |
| Areas | A | Optional explicit area per point, overriding the mesh. | Number |
| Threshold | T | The value the 'how much area reaches this' question is asked about. Inclusive. | Number |
Output
| Name | Nickname | Description | Type |
|---|---|---|---|
| Min | Smallest value. | Number | |
| Mean | Area-weighted mean. | Number | |
| Median | Med | Area-weighted median. | Number |
| Max | Largest value. | Number | |
| Area Above | AA | Area at or above the threshold, in model units squared. | Number |
| Fraction Above | FA | That area as a fraction of the total, 0-1. | Number |
| Report | R | The summary, including how it was weighted. | Text |
