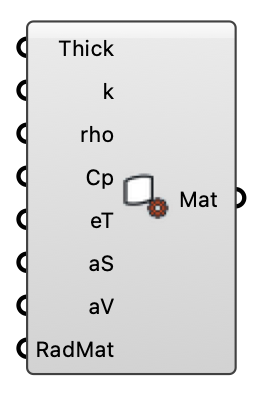

Surface Settings - [source code]
Thermal + optical material properties for a building/ground MRT surface.
Input
| Name | Nickname | Description | Type |
|---|---|---|---|
| Thickness | Thick | Material thickness (m). | Number |
| Conductivity | k | Thermal conductivity W/(m·K). Concrete ≈ 2.3. | Number |
| Density | rho | Density kg/m³. Concrete ≈ 2400. | Number |
| Specific Heat | Cp | Specific heat J/(kg·K). | Number |
| Thermal Absorptance | eT | Longwave emissivity 0–1. | Number |
| Solar Absorptance | aS | Solar absorptance 0–1 (light ~0.3, dark ~0.9). | Number |
| Visible Absorptance | aV | Visible absorptance 0–1. | Number |
| Radiance Material | RadMat | Optional custom Radiance material string. | Text |
Output
| Name | Nickname | Description | Type |
|---|---|---|---|
| Material | Mat | Material for the MRT Surface component. | Generic Data |
