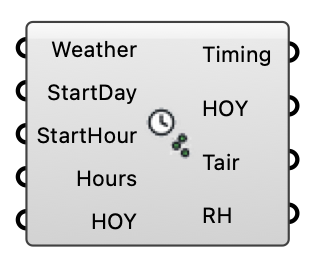

Timing Parameters - [source code]
Define simulation timing and optional weather-driven time series. OutdoorPlus
Input
| Name | Nickname | Description | Type |
|---|---|---|---|
| Weather | Optional Weather object or EPW file path for weather-driven time series. | Generic Data | |
| Start Day | StartDay | Day-of-year index to start (0-based). Optional; default is 0. | Integer |
| Start Hour | StartHour | Hour of day to start (0-23). Optional; default is 0. | Integer |
| Duration (Hours) | Hours | Simulation duration in hours. Optional; default is 24. | Integer |
| Hour of Year | HOY | Optional 1-based start hour of year (1-8760). When connected, overrides Start Day and Start Hour. | Integer |
Output
| Name | Nickname | Description | Type |
|---|---|---|---|
| Timing Settings | Timing | Simulation timing settings. | Generic Data |
| Hours of Year | HOY | Resolved 1-based hour-of-year sequence for the simulated period. | Integer |
| Air Temperature | Tair | EPW dry-bulb temperature (°C) for the resolved hours; useful as a weather fallback for UTCI. | Number |
| Relative Humidity | RH | EPW relative humidity (%) for the resolved hours; useful as a weather fallback for UTCI. | Number |
