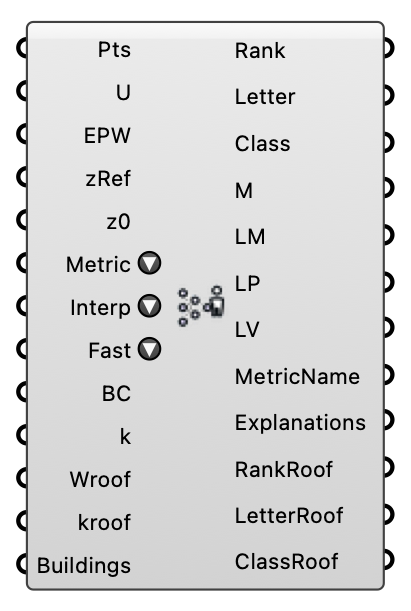

Wind Comfort Predictor (ML) - [source code]
Calculate Pedestrian Wind Comfort using predicted wind fields from the ONNX model.
Input
| Name | Nickname | Description | Type |
|---|---|---|---|
| Points | Pts | Analysis points for mesh visualization. | Point |
| Wind Speeds | U | Predicted wind speeds (m/s) as a DataTree from WindPredictor. | Number |
| EPW Path | EPW | Path to the .epw weather file. | Text |
| Reference Height | zRef | Reference height for the simulations (m). Default = 10.0 | Number |
| Roughness Length (z0) | z0 | Roughness length (m). Default = 1.0 | Number |
| Metric | Comfort metric to use. | Text | |
| Interpolate | Interp | Interpolate between wind directions. Default = true | Text |
| Fast Mode (MoM) | Fast | Use Method of Moments for ultra-fast Weibull estimation. Default = true | Text |
| Boundary Conditions | BC | Optional simulation metadata to automate zRef, z0, and Uref (sim). | Generic Data |
| TKE | k | Turbulent kinetic energy (m²/s²) as a DataTree from WindPredictor. When provided, GEM (Gust Equivalent Mean) is used: GEM = U + g × √(2k/3). Peak factor g is auto-set per metric. | Number |
| Wind Speeds (Roof) | Wroof | Optional roof-level wind speeds (m/s) DataTree. | Number |
| TKE (Roof) | kroof | Optional roof-level TKE (m²/s²) DataTree. | Number |
| Buildings | Optional list of Brep or Mesh objects representing buildings. Needed to elevate roof-level comfort meshes to correct heights. | Geometry |
Output
| Name | Nickname | Description | Type |
|---|---|---|---|
| Comfort Rank | Rank | Wind comfort rank (integer). | Number |
| Class Letter | Letter | Wind comfort class letter (e.g., A, B, C). | Text |
| Class | Wind comfort class description. | Text | |
| Comfort Mesh | M | Colored mesh representing comfort levels. | Mesh |
| Legend Mesh | LM | Legend mesh for comfort categories. | Mesh |
| Legend Points | LP | Label points for the legend letters. | Point |
| Legend Letters | LV | Letters (A-S) for the legend. | Text |
| Metric Name | MetricName | The name of the currently active comfort/safety standard. | Text |
| Category Explanations | Explanations | Detailed descriptions for each class (e.g., A: Sitting Long). | Text |
| Comfort Rank (Roof) | RankRoof | Wind comfort rank (integer) for roof level. | Number |
| Class Letter (Roof) | LetterRoof | Wind comfort class letter for roof level. | Text |
| Class (Roof) | ClassRoof | Wind comfort class description for roof level. | Text |
