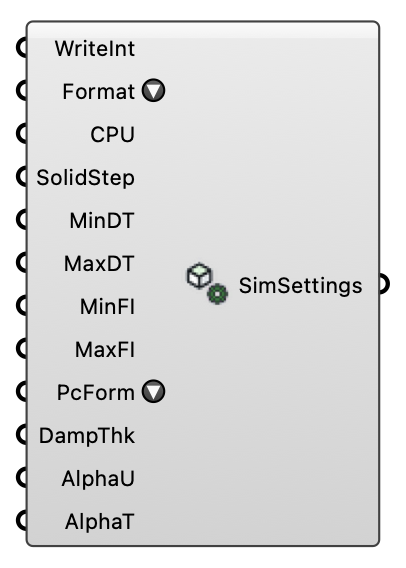

Simulation Settings - [source code]
Configure simulation control settings for UMF. OutdoorPlus
Input
| Name | Nickname | Description | Type |
|---|---|---|---|
| Write Interval | WriteInt | Write interval in time steps. Optional; uses solver default if omitted. | Integer |
| Write Format | Format | Write format: 'ascii', 'binary', or 'compressed'. | Text |
| CPU Count | CPU | Number of CPUs/subdomains to use. Optional; default is 1. | Integer |
| Initial Solid Time Step Factor | SolidStep | Initial solid time step factor for UMF controlDict. Optional. | Number |
| Min Delta T | MinDT | Minimum time step between iterations. Optional. | Number |
| Max Delta T | MaxDT | Maximum time step between iterations. Optional. | Number |
| Min Fluid Iterations | MinFI | Minimum fluid iterations per hourly step before the residual controls may end it. Template default 200: the bulk field of a warm-started hour is stationary by ~150-200 iterations. Optional. | Number |
| Max Fluid Iterations | MaxFI | Maximum fluid iterations per hourly step (template default 1000). The residual controls normally end a warm-started hour at ~200-300 iterations; the first, cold-started hour needs ~350-500. Optional. | Number |
| PC Equation Form | PcForm | 'pc-based' or 'mixed' (default is pc-based). | Text |
| Damping Thickness | DampThk | Blending coefficients: damping thickness. Optional. | Number |
| Alpha Coeff U | AlphaU | Blending coefficients: alphaCoeffU. Optional. | Number |
| Alpha Coeff T | AlphaT | Blending coefficients: alphaCoeffT. Optional. | Number |
Output
| Name | Nickname | Description | Type |
|---|---|---|---|
| Simulation Settings | SimSettings | Simulation control settings. | Generic Data |
