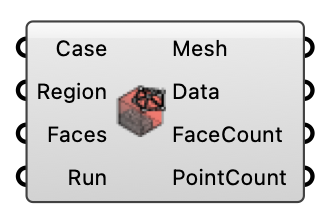

Create Mesh - [source code]
Create a visualization mesh from polyMesh point/face data. OutdoorPlus
Input
| Name | Nickname | Description |
|---|---|---|
| Case | UMF case used to locate the mesh data. | |
| Region | Region name to visualize. | |
| Faces | Optional face indices to visualize. | |
| Run | Generate the mesh when true. |
Output
| Name | Nickname | Description |
|---|---|---|
| Mesh | Generated unified mesh. | |
| Data | Geometric and topological mesh data. | |
| FaceCount | Total face count in the polyMesh. | |
| PointCount | Total point count in the polyMesh. |
