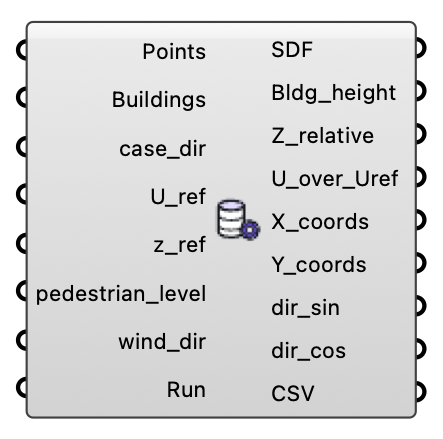

Dataset Curator - [source code]
Compute and export wind dataset features from analysis points and building geometry.
Input
| Name | Nickname | Description | Type |
|---|---|---|---|
| Points | Analysis points with absolute Z elevations. | Point | |
| Buildings | Building Breps or meshes. | Geometry | |
| case_dir | Case directory where Dataset and Scripts folders are created. | Text | |
| U_ref | Reference wind speed in m/s. | Number | |
| z_ref | Reference height in m. | Number | |
| pedestrian_level | Pedestrian mounting height in m. | Number | |
| wind_dir | Wind directions in degrees, positive clockwise. | Number | |
| Run | Write dataset CSV and processing scripts. | Boolean |
Output
| Name | Nickname | Description | Type |
|---|---|---|---|
| SDF | Negative distance to the nearest building surface. | Number | |
| Bldg_height | Building roof elevation under each point. | Number | |
| Z_relative | Relative sampling height. | Number | |
| U_over_Uref | Log-law inlet speed normalized by U_ref. | Number | |
| X_coords | Point X coordinates. | Number | |
| Y_coords | Point Y coordinates. | Number | |
| dir_sin | First wind direction X component. | Number | |
| dir_cos | First wind direction Y component. | Number | |
| CSV_Path | CSV | Generated CSV paths. | Text |
