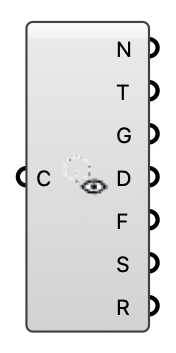

Deconstruct Case - [source code]
Inspect any Eddy3D case: Outdoor wind study, Indoor case, or OutdoorPlus (UMF) case.
Input
| Name | Nickname | Description | Type |
|---|---|---|---|
| Case | C | Any Eddy3D case: an Outdoor wind study, an Indoor case, or an OutdoorPlus (UMF) case. | Generic Data |
Output
| Name | Nickname | Description | Type |
|---|---|---|---|
| Name | N | Case name. | Text |
| Type | T | Which plugin produced it (Outdoor / Indoor / OutdoorPlus). | Text |
| Geometry | G | Representative geometry (buildings / room / total mesh). | Mesh |
| Domain | D | Simulation domain (wind tunnel box / indoor zone). | Box |
| Case Folders | F | Case directories on disk (one per sub-result). | Text |
| Sub-Results | S | Sub-result labels (wind directions for Outdoor; the case name otherwise). | Text |
| Regions | R | Regions available to probe (air, buildings, … for UMF; a single empty entry otherwise). | Text |
