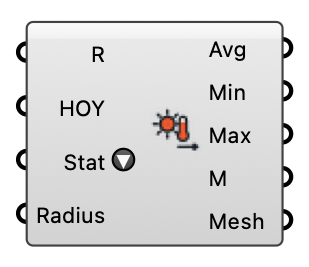

Deconstruct MRT - [source code]
Probe-specific statistics (and optionally the raw hours) from an MRT Result, without putting the full 8760-hour year on the canvas.
Input
| Name | Nickname | Description | Type |
|---|---|---|---|
| Result | R | Result output of the MRT component. | Generic Data |
| HOY | Hour(s) of year (1-8760) to restrict to. Leave unconnected for the whole year. The statistics are reduced over exactly these hours, so a July-afternoon list gives the July-afternoon mean — no re-solve needed. | Integer | |
| Statistic | Stat | Statistic used to color the preview mesh: Mean, Min, or Max over the selected HOY. Defaults to Mean. | Text |
| Radius | Half-width of each colored square centered on an MRT probe point. | Number |
Output
| Name | Nickname | Description | Type |
|---|---|---|---|
| Mean | Avg | Mean radiant temperature (°C) per probe over the selected hours — the annual average when HOY is unconnected. | Number |
| Min | Lowest mean radiant temperature (°C) per probe over the selected hours. | Number | |
| Max | Highest mean radiant temperature (°C) per probe over the selected hours. | Number | |
| MRT | M | Mean radiant temperature (°C) at each selected hour — one branch per HOY, each holding every probe's value {hoy}(probe count). Populated ONLY when HOY is connected; with HOY unconnected this would be the entire year, which is the tree this component exists to avoid. Note that a large HOY list is inherently expensive: every value asked for here becomes an object on the canvas. | Number |
| Mesh | Colored probe mesh for the selected Mean, Min, or Max statistic. Uses the same default jet color ramp and square markers as Wind Predictor. | Mesh |
