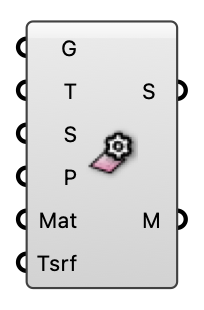

MRT Surface - [source code]
Mesh Breps into a tagged radiation surface for an MRT analysis.
Input
| Name | Nickname | Description |
|---|---|---|
| Geometry | G | Surface geometry to mesh. |
| Type | T | Surface type: 0 Building, 1 Ground, 2 Vegetation, 3 Tree. |
| Simulated | S | True if the surface temperature is solved; false treats it as ambient. |
| Patch Size | P | Target mesh patch edge length (m) for view-factor resolution. |
| Mat | Optional material from a Surface / Vegetation / Tree Settings component; overrides the default reflectance / Radiance material for this surface. | |
| Tsrf | Optional fixed surface temperature (°C) for the longwave MRT — one value (held all year) or an 8760-hour series. When set, this surface uses the given temperature instead of the EnergyPlus solve or ambient (overrides Simulated). Leave empty to keep Simulated/Ambient. |
Output
| Name | Nickname | Description |
|---|---|---|
| Surface | S | Tagged radiation surface for the MRT component. |
| Mesh | M | The meshed surface (preview). |
