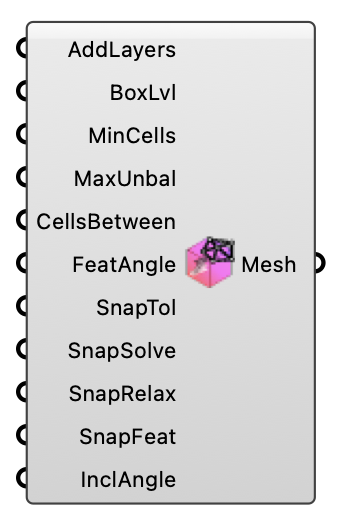

Simulation Mesh Settings - [source code]
Configure snappyHexMesh settings for the simulation. OutdoorPlus
Input
| Name | Nickname | Description |
|---|---|---|
| AddLayers | Enable prism layers. Optional; default is true. | |
| BoxLvl | Refinement level inside the refinement box. Optional; default is 2. | |
| MinCells | Minimum refinement of cells. Optional; default is 0. | |
| MaxUnbal | Maximum load unbalance. Optional; default is 0.10. | |
| CellsBetween | Number of cells between refinement levels. Optional; default is 2. | |
| FeatAngle | Feature angle for edge detection (deg). Optional; default is 10. | |
| SnapTol | Snap tolerance. Optional; default is 1.0. | |
| SnapSolve | Solver iterations for snapping. Optional; default is 80. | |
| SnapRelax | Relaxation iterations for snapping. Optional; default is 8. | |
| SnapFeat | Feature snap iterations. Optional; default is 20. | |
| InclAngle | Identify a feature when face angle < includedAngle (deg). Optional; default is 90. |
Output
| Name | Nickname | Description |
|---|---|---|
| Mesh | Simulation mesh settings for snappyHexMesh. |
