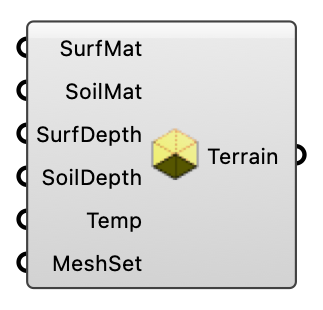

Terrain Region - [source code]
Create a terrain region with materials and depth settings. OutdoorPlus
Input
| Name | Nickname | Description |
|---|---|---|
| SurfMat | Material settings for the surface layer. | |
| SoilMat | Material settings for the soil layer. | |
| SurfDepth | Surface layer depth. Optional; default is 0.1. | |
| SoilDepth | Soil layer depth. Optional; default is 1.9. | |
| Temp | Initial terrain temperature (deg C). Optional; default is 25. | |
| MeshSet | Optional meshing settings for the terrain region. |
Output
| Name | Nickname | Description |
|---|---|---|
| Terrain | Terrain region object for the case. |
