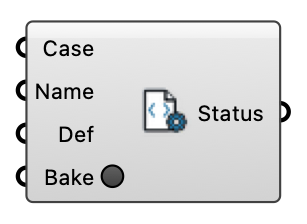

Custom Function Object - [source code]
Inject a custom OpenFOAM function object into a written case so the solver runs it at runtime — fieldAverage, yPlus, wallShearStress, forces, surfaceFieldValue, a coded FO, etc.
Input
| Name | Nickname | Description | Type |
|---|---|---|---|
| Case | The written wind case / loaded study to add the function object to. | Generic Data | |
| Name | Function object key (a valid OpenFOAM word, e.g. "fieldAverage1"). | Text | |
| Definition | Def | The function object body — the contents between its braces, as text (from a panel) or a Foamonary. Example: type fieldAverage; libs ("libfieldFunctionObjects.so"); fields ( U p ); The component wraps it as Name { ... } inside controlDict functions. | Generic Data |
| Bake | Write the function object into each case's controlDict (idempotent). Do this before running the solve; momentary button. | Boolean |
Output
| Name | Nickname | Description | Type |
|---|---|---|---|
| Status | What was baked, and into how many cases. | Text |
