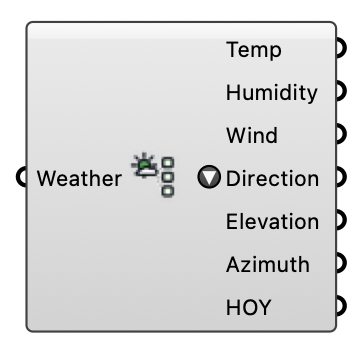

Deconstruct Weather - [source code]
Deconstruct a Weather object into hourly time series values. OutdoorPlus
Input
| Name | Nickname | Description | Type |
|---|---|---|---|
| Weather | Weather object, or an EPW file path (e.g. from Download Weather), to deconstruct. | Generic Data |
Output
| Name | Nickname | Description | Type |
|---|---|---|---|
| Dry Bulb Temperature | Temp | Hourly dry-bulb temperature (deg C). | Number |
| Relative Humidity | Humidity | Hourly relative humidity (%). | Number |
| Wind Speed | Wind | Hourly wind speed (m/s). | Number |
| Wind Direction | Direction | Hourly wind direction (deg clockwise from north; 0 means calm). | Integer |
| Solar Elevation | Elevation | Hourly solar elevation (deg above the horizon). Night hours are 0, not negative — the sun is either up or it is not, and downstream components read 0 as night. | Number |
| Solar Azimuth | Azimuth | Hourly solar azimuth (deg clockwise from north), aligned hour for hour with Solar Elevation. 0 at night, where azimuth is meaningless. | Number |
| Hour of Year | HOY | 0-based hour-of-year index, aligned with every other series — feed it to the HOY-driven components. | Integer |
