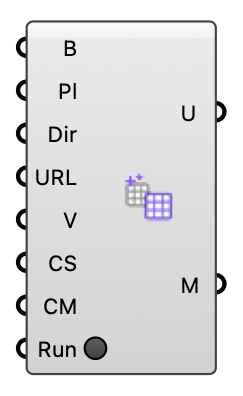

GAN Predict - [source code]
Predict a pedestrian wind-speed field from buildings using the Eddy3D GAN (no CFD run). Sends the geometry to the GAN API and returns wind speeds + a colored result mesh.
Input
| Name | Nickname | Description | Type |
|---|---|---|---|
| Buildings | B | Building meshes. | Mesh |
| Analysis Plane | Pl | Square analysis plane (defaults to a 512×512 box around the buildings). | Rectangle |
| Wind Direction | Dir | Wind direction in degrees (0=N, clockwise). | Integer |
| API URL | URL | GAN API base URL. | Text |
| Voxel Size | V | Geometry rasterization voxel size (m). | Number |
| Color Size | CS | Result-mesh pixel size for coloring. | Number |
| Color Map | CM | Color map: Viridis, Turbo, or Inferno. | Text |
| Run | Run the prediction. Momentary — resets when the result arrives. | Boolean |
Output
| Name | Nickname | Description | Type |
|---|---|---|---|
| Wind Speed | U | Predicted pedestrian wind speeds. | Number |
| Result Mesh | M | Colored wind-speed result mesh. | Mesh |
