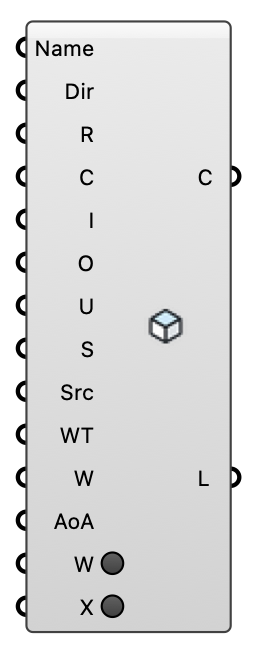

Indoor Case - [source code]

Build an isothermal indoor ventilation case (room + inlets + outlets + sinks) for OpenFOAM 12.

Input

Name Nickname Description Type
Case Name Name Case name (no spaces). Leave empty for an auto-generated name (same convention as Outdoor). Text
Working Directory Dir Working directory (default ~/Eddy3D/Indoor). Text
Room R Closed room Brep. Brep
Cell Size C Mesh cell size (m). Number
Inlets I Inlet surface(s): Brep or Indoor Inlet component(s). Generic Data
Outlets O Outlet surface(s): Brep or Indoor Outlet component(s). Generic Data
Inlet Speed U Fallback inlet speed (m/s) when raw Breps are used. Ignored when Indoor Inlet components provide velocity. Number
Sinks S Momentum sinks (Indoor Sink). Generic Data
Sources Src Emitters: Momentum / Heat / CO2 / Viral Source components. Generic Data
Wall Temp WT Optional wall temperature (K) for the transported temperature field (needs a Heat Source). Number
Walls W Optional Indoor Wall components with a Surface: each gets its own patch and temperature. Room faces not covered by one keep the case-wide Wall Temp. Generic Data
Age of Air AoA Solve the mean age of air (OpenFOAM 'age' function object) during the run. Age [s] is the time since the air at each point entered the room — the ventilation map: low = well flushed, high = trapped in a corner the supply never reaches. Unlike an air-change rate, which is one number for the whole room, it says WHERE the ventilation fails. Adds a cheap scalar transport solved at each write; probe the 'age' field to read it. Optional; default is off. Boolean
Write W Click to write the case to disk. Resets automatically so it never re-writes on recompute. Boolean
Clear X Click to delete the case folder. Resets automatically so it never re-deletes on recompute. Boolean

Output

Name Nickname Description Type
Case C The indoor case (for the Run component). Generic Data
Logs L Build / write logs. Text
