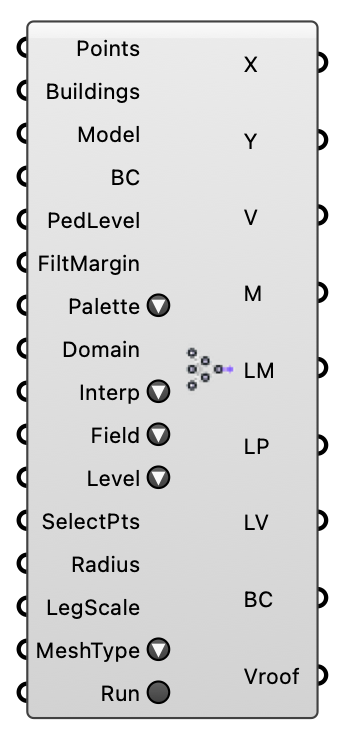

Wind Predictor - [source code]
Run ONNX wind-field prediction end-to-end. Computes SDF, building height, Zrelative, U/Uref, direction features from geometry, assembles the 8-channel input tensor, runs ONNX inference, and outputs predicted wind speeds. Supports legacy 1ch (U), 2ch (U + k) and new 4ch (U + k + Uroof + kroof) models.
Input
| Name | Nickname | Description | Type |
|---|---|---|---|
| Points | List of 3D points. Each point's Z must be absolute elevation (m). | Point | |
| Buildings | List of Brep or Mesh objects representing buildings. | Geometry | |
| Model | Full file path to the ONNX model. Connect the FilePath output from the ML Model component. | Text | |
| Boundary Conditions | BC | Boundary conditions from the ABL or Uniform Flow component. Uref, zRef, z0, wind directions, and EPW path are extracted automatically. | Generic Data |
| Pedestrian Level | PedLevel | Pedestrian mount height (m). Default = 1.8 | Number |
| Filter Margin | FiltMargin | Margin (in meters) to mask out from the outer perimeter of the prediction plane due to unstable boundary effects. Default = 100.0 | Number |
| Palette | Color palette for visualization. | Text | |
| Legend Domain | Domain | Optional custom domain [min, max] to lock the color bounds. If empty, the colors scale dynamically to the data. | Domain |
| Interpolate | Interp | Visualization style. Flat (pixelated) vs Smooth (interpolated colors). | Text |
| Field | Field to visualize. Affects M, LM, LP, LV outputs. | Text | |
| Level | Visualization level. Roof Level only applies when a 4-channel model is loaded. | Text | |
| Selection Points | SelectPts | Optional locations to output. The model still runs on all input Points; each selection receives the result of its nearest input sensor, in selection order. | Point |
| Radius | Marker size (m): circle radius or square half-width. | Number | |
| Legend Scale | LegScale | Uniform scale factor for the legend bar and label spacing. | Number |
| Mesh Type | MeshType | Prediction marker topology. Square uses one quad per point and is fastest; Circle uses a 16-sided n-gon. | Text |
| Run | Sticky on/off switch for the prediction (a toggle, not a momentary button). On: every input change re-runs inference. Off: inference is skipped and the last result stays on the outputs, so the canvas can be rewired without paying for a solve. A wired boolean works the same as the inline switch. | Boolean |
Output
| Name | Nickname | Description | Type |
|---|---|---|---|
| X | X coordinate (m) of each valid input point. | Number | |
| Y | Y coordinate (m) of each valid input point. | Number | |
| Values | V | Predicted field values at each valid input point. Outputs wind speed (m/s) or turbulent kinetic energy (m²/s²) depending on the Field input. Branches represent different wind directions. | Number |
| Grid Mesh | M | A fast-rendering contiguous coloured preview mesh of the predictions. | Mesh |
| Legend Mesh | LM | A colored mesh strip acting as a visual legend. | Mesh |
| Legend Points | LP | Locations for the legend text in the 3D viewport (Generic type to prevent red cross preview). | Generic Data |
| Legend Values | LV | Text values corresponding to the generated legend. | Text |
| Boundary Conditions | BC | Automated simulation boundary conditions metadata. | Generic Data |
| Values (Roof) | Vroof | Predicted roof-level field values at each valid input point. Outputs wind speed or TKE depending on the Field input. Branches represent different wind directions. Empty unless a 4-channel model is used. | Number |
