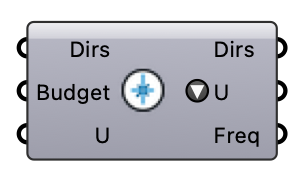

Wind Rose Cluster - [source code]
Cluster annual wind conditions into a budget of representative directions using k-means over hourly wind vectors (speed x direction): frequent, strong conditions attract the budget, and each cluster reports an observed direction/speed pair plus its frequency. Without wired speeds, clusters directions alone (unit vectors).
Input
| Name | Nickname | Description | Type |
|---|---|---|---|
| Directions | Dirs | Wind directions in degrees (e.g. hourly values from an EPW). | Number |
| Budget | Maximum number of representative directions (clusters), e.g. 8 or 16. | Integer | |
| Wind Speeds | U | Hourly wind speeds (m/s) paired with Directions (optional). When wired, the clustering runs over wind VECTORS (speed x direction), so speed and frequency both shape the representative set; calm hours (< 0.5 m/s) are excluded. | Number |
Output
| Name | Nickname | Description | Type |
|---|---|---|---|
| Wind Directions | Dirs | Distinct representative wind directions in degrees, sorted ascending; plug into the ABL or Uniform Flow component's Wind Directions input. | Number |
| Wind Speeds | U | Representative wind speed (m/s) per cluster — the observed speed of the cluster's medoid hour, aligned with Wind Directions; plug into the ABL component's Wind Speed input. Requires wired input speeds. | Number |
| Frequencies | Freq | Fraction of (non-calm) hours in each cluster, aligned with Wind Directions — the per-direction weights for annual wind-comfort statistics. Sums to 1. | Number |
