Solid Mesh Parameters

Solid Mesh Parameters - [source code]

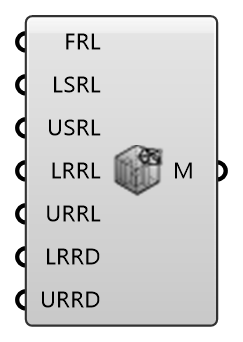

Meshing parameters for solid for Solid Type component.

Input

• FRL

  Feature refinement level. Default value is '4'

• LSRL

  Lower value of surface refinement level. Default value is '3'

• USRL

  Upper value of surface refinement level. Default value is '5'

• LRRL

  Lower value of region refinement level. Default value is '4'

• URRL

  Upper value of region refinement level. Default value is '3'

• LRRD

  Lower distance to which apply region refinement level. Default value is '1.0'

• URRD

  Upper distance to which apply region refinement level. Default value is '1.0'

Output

• M

  Solid mesh paremeters for Solid Type component.
